Read the dovetails. Date the chest.
The dovetail joint at the corner of a drawer is the most reliable dating evidence in American furniture. The way the joint was cut — by hand, by which kind of saw, with which tooling marks, in which proportions — tells you within a 30-year window when the drawer was built. The visible woodwork at the front and the hardware can lie (drawers were re-fronted; hardware was replaced); the dovetails are part of the structure and almost never altered. Here is how to read them at bench-side.
I. HAND-CUT DOVETAILS, 1700-1850
Wide pins. Narrow tails. Saw marks visible.

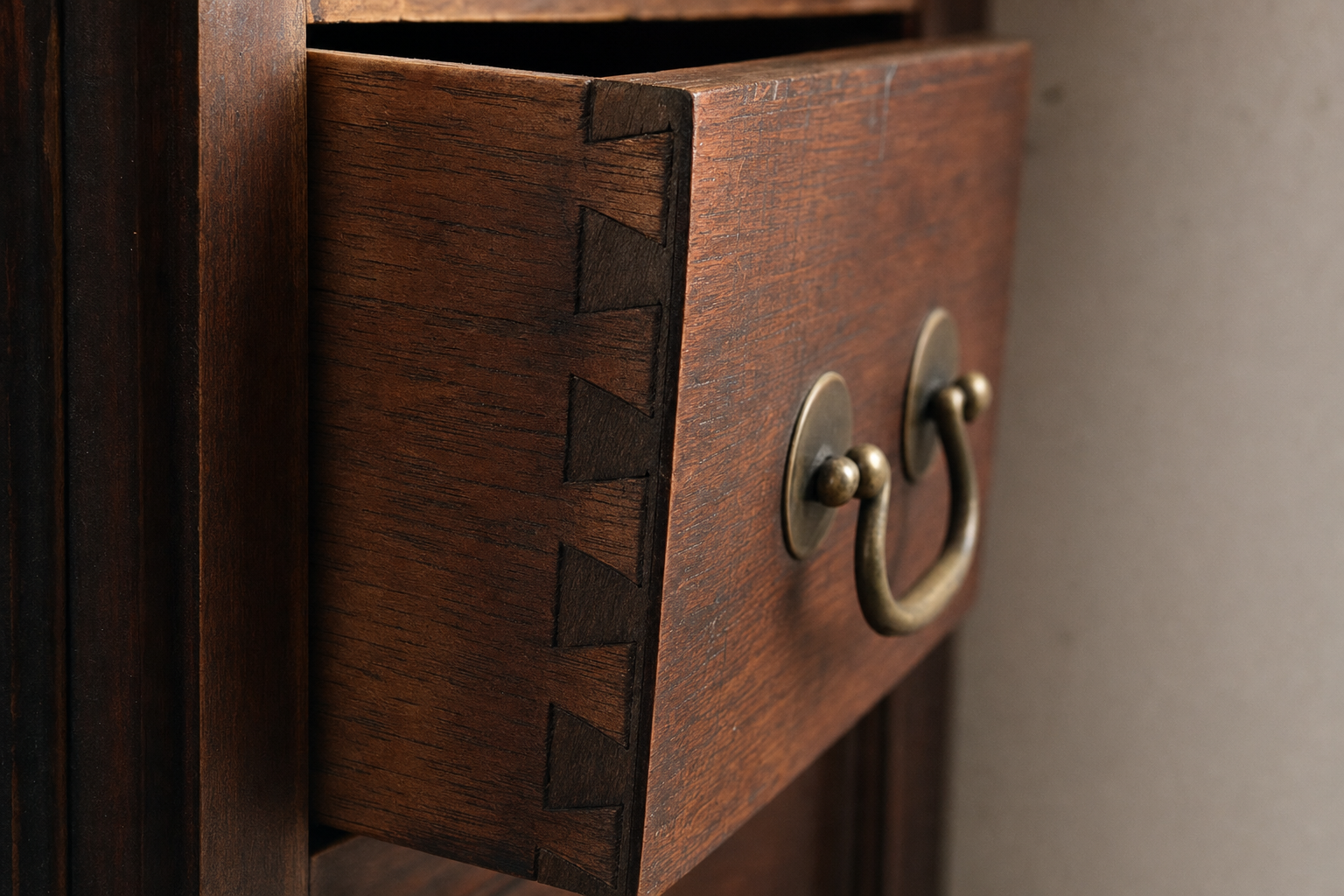

Hand-cut dovetails from the 18th and early 19th centuries are typically wide-pinned and narrow-tailed — the pin (the wedge-shaped piece extending from the drawer side) is wide at the base and the tail (the receiving cut in the drawer front) is narrow. The proportion is roughly 1:3 to 1:4 pin-to-tail, sometimes wider. The saw marks at the bottom of each cut are typically angled and irregular; the chisel-pared shoulders show slight tool marks; the spacing varies slightly across the joint. Federal-period (1780-1830) and earlier American chests almost always show hand-cut dovetails in this style.
II. LATER HAND-CUT, 1820-1860
Tighter spacing. Narrower pins. Saw still visible.
By the mid-19th century, hand-cut dovetails became finer and more uniform — narrower pins (proportions closer to 1:2 pin-to-tail), tighter spacing, more consistent saw work. The craftsman was still cutting each pin and tail by hand but with practiced efficiency. Sheraton-period (1810-1840) and early Victorian (1840-1860) chests typically show this style. Saw marks are still visible at the bottom of each cut but more uniform than 18th-century work. Tool marks at the shoulders are reduced as chisel work became more skilled.
III. KNAPP JOINT, 1870-1900
Machine half-circle joint. Half-circle pin. Distinctive look.
The Knapp joint (also called pin-and-cove or pin-and-scallop) is a transitional joint patented in 1867 — fully machine-cut, with a distinctive half-circle pin and a complementary half-circle cove. Easy to identify: the pin is shaped like a half-circle pegboard piece, the receiving cut is the matching half-circle. Used on machine-made furniture from about 1870 to 1900. If you see this joint, the chest was built in that window — never earlier, rarely later.
IV. EARLY MACHINE DOVETAILS, 1880-1920
Uniform pins and tails. No saw marks. Square shoulders.
By the 1880s, the modern machine-cut dovetail had emerged — uniform pin and tail proportions, typically 1:1 to 1:2 pin-to-tail (much narrower than hand-cut), no visible saw marks at the bottom of cuts, square clean shoulders, identical spacing across the joint. The joint is machined with a router or a dovetail machine; the cuts are mathematically identical. Late Victorian (1880-1900) and Arts-and-Crafts era (1900-1920) machine-made furniture shows this style.
V. MODERN MACHINE DOVETAILS, 1920-PRESENT
Even tighter. Smaller pins. Sometimes pressed-in.
From the 1920s onward, machine dovetails became tighter and more uniform — narrower pins (1:1 ratio), perfect spacing, smooth machined surfaces. Some mid-20th-century production used pressed-in or stapled corner joints that mimic dovetails visually but are not interlocking joints; these fail under load and are obvious on close inspection. True machine dovetails from this period are mechanically sound but visually distinct from hand work — they lack the slight variation that hand-cutting always produces.
VI. HOW TO READ A JOINT AT THE BENCH
Pin shape. Spacing variation. Saw and chisel marks.
Open a drawer and look at the corner joint where the drawer side meets the drawer front. Three things to read: (1) the shape of the pin — wide-base trapezoid = early hand-cut; narrow trapezoid = later hand-cut; uniform mathematical shape = machine; half-circle = Knapp. (2) Spacing variation across the joint — slightly irregular = hand; perfectly identical = machine. (3) Tool marks at the bottom of each cut — angled saw scratches and slight chisel marks = hand; smooth machined surface = machine. Together these three reads place the drawer to within roughly 30 years.
VII. WHEN MULTIPLE PERIODS APPEAR IN ONE PIECE
Original joinery vs replaced drawer.
Sometimes you find hand-cut dovetails on three drawers and machine-cut on the fourth. The most common explanation is that one drawer was replaced — typically the bottom drawer or a smaller upper drawer, where damage was heaviest and a period-style replacement was cheaper than a full restoration. The original joinery on the surviving drawers dates the piece; the replacement drawer dates the repair. This is restoration evidence, not a deception per se, but it affects valuation. We document any replaced components on assessment and disclose to the client.
Frequently asked
Are hand-cut dovetails always older than machine?
Almost always. Hand-cut dovetails are pre-1870 in American work, with rare exceptions for high-end custom workshops that continued hand-cutting into the 20th century. Machine dovetails are post-1870. The Knapp joint is the easy mid-century transitional. Reading the joint identifies the construction era with high reliability.
Do European antiques follow the same chronology?
Roughly. English furniture follows a similar pattern with machine dovetails appearing slightly later (1870s-1890s). French furniture has slightly different joint preferences (more mortise-and-tenon at drawer corners on some periods). The general principle — hand-cut work shows variation, machine work shows uniformity — applies universally. Period-specific dating uses country-specific references.
Can hand-cut dovetails be faked?
Yes — high-end reproductions and forgeries sometimes hand-cut the dovetails to match period work. Tell-tales: the wood usually shows machine-planed surfaces elsewhere (period work shows hand-planed marks); the patina is uniform across all surfaces (period work has differential patina from use patterns); the wood species may be wrong for the claimed period. Dovetail style is one of many dating evidences; cross-reference matters.
Does the wood species help date a piece?
Yes. Cuban mahogany was common in American Federal furniture (1780-1830) and largely exhausted by the 1850s; Honduran mahogany dominated after. Quarter-sawn oak in tiger-grain patterns was the dominant material for Arts-and-Crafts and Mission furniture (1895-1925). Other articles in the journal cover wood-ID specifically. Wood plus joinery plus hardware plus finish together date a piece more reliably than any single evidence.
Why does Knapp joint identification matter?
Because it dates the piece to a narrow 1867-1900 window with high certainty. Knapp-jointed furniture is mid-to-late Victorian American factory work, often walnut or cherry, mass-produced for the expanding middle-class furniture market. Knowing the construction era informs the right restoration discipline (these are workshop pieces, not period-correct hand-built furniture — restoration discipline is different).
Does dovetail style affect value?
Yes — hand-cut work generally commands higher value than machine work of the same period, all else equal. Earlier hand-cut (1800-1850) commands higher value than later hand-cut (1850-1870). Mismatched joints across drawers (one machine-cut among hand-cut originals) reduce value modestly because they indicate replacement. Cross-reference with wood, hardware, finish, and proportions matters for actual valuation.
